Vertical Packaging
Continuous cycle
ME-806C
Highlight Features
Main benefits
High production speed
Capable of packaging up to 120 bags per minute, making it ideal for high-demand environments and significantly improving production times.
Process accuracy and stability
Servo motors precisely control every movement of the clamp and film, ensuring uninterrupted packaging and high-quality sealing.
Easy operation and setup
The touchscreen allows you to intuitively adjust each machine parameter, providing easy access to all controls and offering flexibility for different types of packaging.
High speed and consistent accuracy
Continuous cycle packaging machine
The ME-806C continuous cycle machine is ideal for companies that require fast and efficient packaging. Capable of reaching up to 120 bags per minute, this packaging machine is an essential solution for production lines seeking to maximise productivity.
Its robust design and the use of servomotors for jaw movement and film feeding ensure precise and continuous operation, minimising interruptions and improving the overall performance of the packaging process.
The machine’s intuitive operation is facilitated by an easily accessible touchscreen that allows operators to control and adjust all operating parameters with ease.
Media Gallery

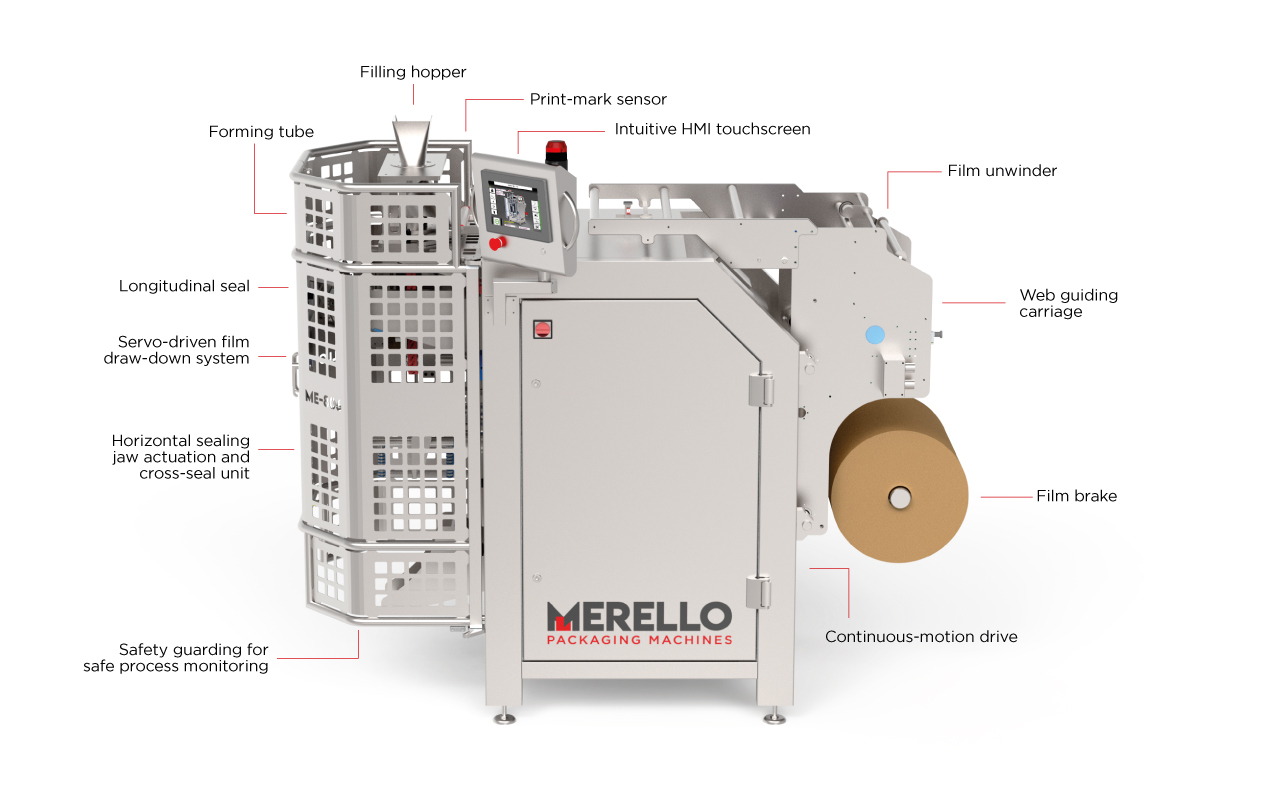

ME-806c Vertical Packaging
The touchscreen includes settings for temperature, sealing time and packaging speed, providing the flexibility needed to adapt to different types of products and packaging requirements.
Thanks to its compact design, the ME-806C can be easily integrated into any existing production line, optimising space and plant resources.
Discover more
about our
Vertical Packaging
comparison chart
Technical features
Length (approx): 2.135 to 2.460 mm
Width (approx): 1.200 to 1.518 mm
Height (approx): 1.960 to 2.190 mm
Weight: 460 to 760 Kg
Power: 5kW
Pneumatic consumption: 2 liters/cycle
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: Remote VPN
Production: Up to 120 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 40mm/250 - 50mm/350
Bag Types: All mentioned packaging types and accessories
Length (approx): 2.135 to 2.460 mm
Width (approx): 1.200 to 1.518 mm
Height (approx): 1.960 to 2.190 mm
Weight: 460 to 760 Kg
Power: 5kW
Pneumatic consumption: 2 liters/cycle
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: Remote VPN
Production: Up to 65 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 40mm/250 - 50mm/350
Bag Types: All mentioned packaging types and accessories
Length (approx): 2.135 to 2.460 mm
Width (approx): 1.200 to 1.518 mm
Height (approx): 1.960 to 2.190 mm
Weight: 460 to 760 Kg
Power: 5kW
Pneumatic consumption: 2 liters/cycle
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: Remote VPN
Production: Up to 80 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 40mm/250 - 50mm/350
Bag Types: All mentioned packaging types and accessories
Length (approx): 2.853 mm
Width (approx): 1.866 mm
Height (approx): 2.715 mm
Weight: 1.050 Kg
Power: 5kW
Pneumatic consumption: 2 litros/ciclo
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: VPN remota
Production: Hasta 25 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 260mm/450
Bag Types: All mentioned packaging types and accessories
These specifications are subject to change according to customer requirements
if you require further information
