Vertical Packaging
Inclined Tube
ME-806I
Highlight Features
Main benefits
Versatility of cycle times
With continuous and intermittent cycle options, the ME-806I adapts to specific production needs, enabling effective handling of different products.
Guaranteed product protection
The inclined tube design minimises the risk of damage, ensuring that fragile products are packaged with the utmost care.
Advanced and adaptive control
The ability to adjust the tilt angle from the HMI screen offers unique customisation, ensuring that each product is handled in the most appropriate and efficient manner.
Protection of fragile products
Packaging machine with inclined tube
The ME-806I is a versatile packaging machine designed to handle delicate products that require special treatment during packaging.
With continuous or intermittent cycle options, this machine offers the flexibility needed to adapt to different production volumes and product types. Its inclined or tiltable tube allows for safe and careful handling of products such as biscuits, icings, chocolates and other fragile items, significantly reducing the risk of damage.
Media Gallery

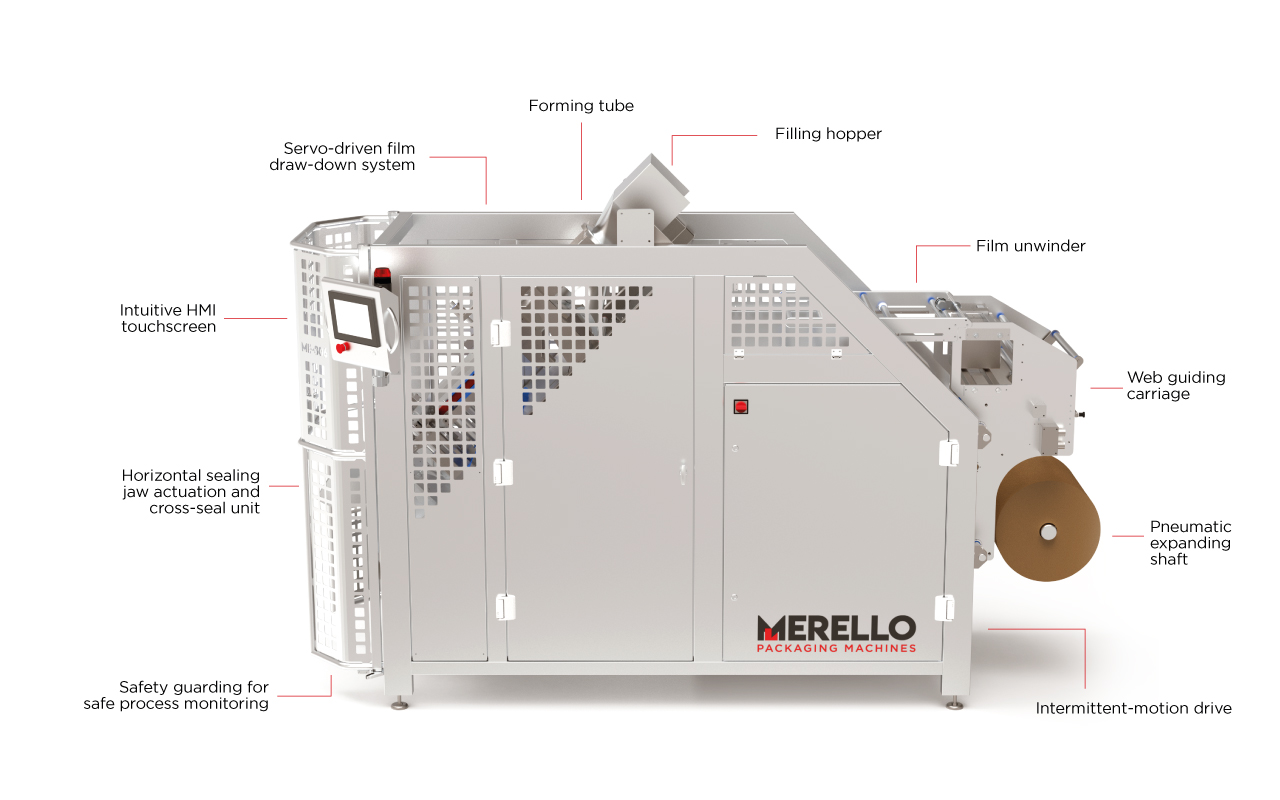

ME-806I Vertical Packaging
The angle of the tube can be easily adjusted from the HMI screen, allowing operators to adapt the machine to the type of product being packaged and optimise the process. This innovative design not only improves packaging efficiency, but also helps maintain the presentation of the final product.
The ME-806I is ideal for companies that value packaging quality and protection for their most vulnerable products.
Discover more
about our
Vertical Packaging
comparison chart
Technical features
Length (approx): 2.135 to 2.460 mm
Width (approx): 1.200 to 1.518 mm
Height (approx): 1.960 to 2.190 mm
Weight: 460 to 760 Kg
Power: 5kW
Pneumatic consumption: 2 liters/cycle
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: Remote VPN
Production: Up to 120 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 40mm/250 - 50mm/350
Bag Types: All mentioned packaging types and accessories
Length (approx): 2.135 to 2.460 mm
Width (approx): 1.200 to 1.518 mm
Height (approx): 1.960 to 2.190 mm
Weight: 460 to 760 Kg
Power: 5kW
Pneumatic consumption: 2 liters/cycle
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: Remote VPN
Production: Up to 65 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 40mm/250 - 50mm/350
Bag Types: All mentioned packaging types and accessories
Length (approx): 2.135 to 2.460 mm
Width (approx): 1.200 to 1.518 mm
Height (approx): 1.960 to 2.190 mm
Weight: 460 to 760 Kg
Power: 5kW
Pneumatic consumption: 2 liters/cycle
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: Remote VPN
Production: Up to 80 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 40mm/250 - 50mm/350
Bag Types: All mentioned packaging types and accessories
Length (approx): 2.853 mm
Width (approx): 1.866 mm
Height (approx): 2.715 mm
Weight: 1.050 Kg
Power: 5kW
Pneumatic consumption: 2 litros/ciclo
Input Voltage: 400 V 3L+N+PE ± 10%
Connection: VPN remota
Production: Hasta 25 units/min
Sealing: Const. heat, impulse,ultrasonic
Bag Width: 260mm/450
Bag Types: All mentioned packaging types and accessories
These specifications are subject to change according to customer requirements
